75l Vacuum Chemical Reactor

A chemical reactor is a special-purpose vessel, the main task of which is to conduct a different series of chemical processes. This equipment is used to perform a large number of technological processes in a liquid medium, including with the use of aggressive chemical solutions.

Chemical reactors are used for the production of medications, cosmetics, as well as many other branches of modern industry, the technological process which requires heating, mixing and storage.

The design of the reactor allows operation both under vacuum and at pressures up to 4 atmospheres. The heating jacket provides heating of the product up to 160 degrees Celsius.

The choice of parameters of pressure and temperature of chemical reactor depending on the technological requirements for production processes. It could be a chemical reactor with low, medium or high pressure, low temperature or high temperature, regular or continuous action.

The task of a chemical reactor is the production of the final product from different components while observing all the requirements of the manufacturing process with maximum efficiency.

To request

Design

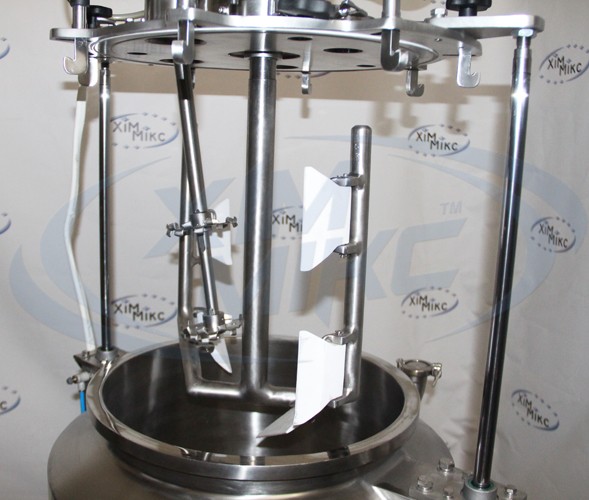

The chemical reactor is a stainless steel tank of AISI 304 or AISI 316, equipped with a heat-insulated heating jacket, a rotary drive, a seal assembly, a shaft with a frame agitator and a control panel. The reactor tank has hermetic loading and unloading units. The control panel is equipped with a heating meter-regulator, a frequency converter, buttons for starting and stopping the mixing device, buttons for starting and stopping the pump (optional), an emergency stop button and a motor control protection system.

Principle of operation

The loading of liquid and bulk components into the mixer is carried out through the flange clamp or charging port, which is hermetical sealed with a lid. The heating jacket ensures uniform heating and maintaining an optimum temperature from 20 ° C to 160 ° C according to the formulation. Flange clamps on the lid allow you to connect all the necessary equipment to create a vacuum or pressure inside the tank. When the mixing device rotates, materials under mild driving conditions are mixed along complex trajectories. Unloading of the finished product through the unloading bottom valve.

Advantages

• Uniform mixing of components.
• The use of special coolant allows you to extend the operating temperature range up to 160 degrees.
• The tank of the mixer and anchor agitator are made of food stainless steel.
• The ability to mix dry materials with liquid components.
• The tank of the mixer is hermetically closed.
• External and internal surfaces of the mixer are easy to sanitize.

The chemical reactor can be equipped with additional equipment in any configuration:
• Vacuum loading system;
• Pneumatic actuator of the unloading crane (with air supply through a rotating union);
• Cutter (chopper, cleaver);
• CIP wash (spray balls);
• Security fencing;
• Heating and cooling system of the tank;
• Adaptation of the mixer for working with bins (loading and unloading in the tank);
• Installation of Instrumentation (I & C) digital or analog outputs for remote work with a mixer, light and sound alarms, rev counter, tachometer, TOUCH touch panel, etc.
