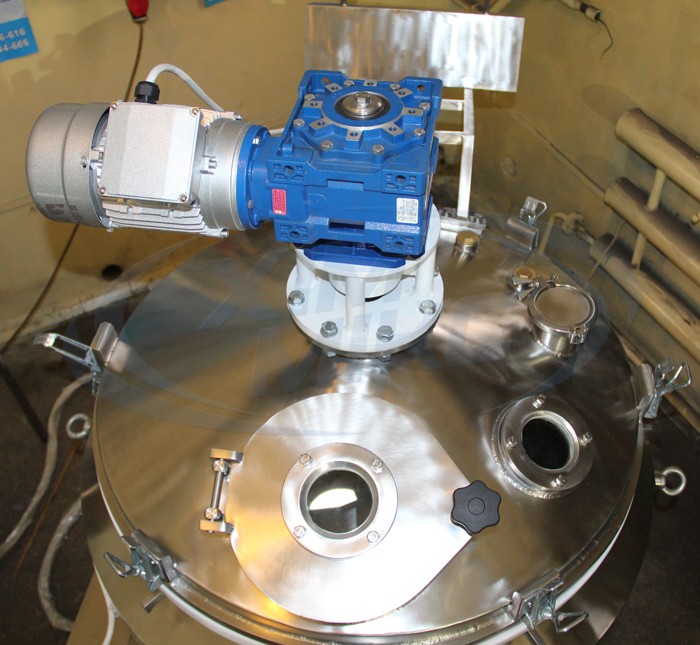

250l The boiling vessel

The boiling vessel with agitator is a type of chemical reactor adapted to the food industry.
Boiling vessels with agitator are used in production when it is necessary to execute the heat treatment, evaporation and mixing for preparing of various products.
This equipment can be several model configurations:

• the hermeticity of the vessel – atmospheric or vacuum;
• type of heating – stand-alone (with built heating elements) or steam boiler;
• type of unloading – bottom unloading or turnover container;
• type of mixing – laminar mixing, homogenization or combined method.

According to the planned processes reactor can be equipped by the heating and/or cooling jacket, thermo-insulation and have different types of mixing devices:

• High Flow propeller mixers for laminar mixing or dissolving bulk materials in liquids;
• Propeller mixers INTERMIG for laminar mixing and crystallization of materials;
• Anchor mixers with scrapers for laminar mixing and removal the near-bottom layer;
• Homogenizer (dissolver) for intensive, cavitation mixing and homogenization of materials;
• Bottom propeller mixer with magnetic clutch for mixing liquids with high requirements to sanitation.
